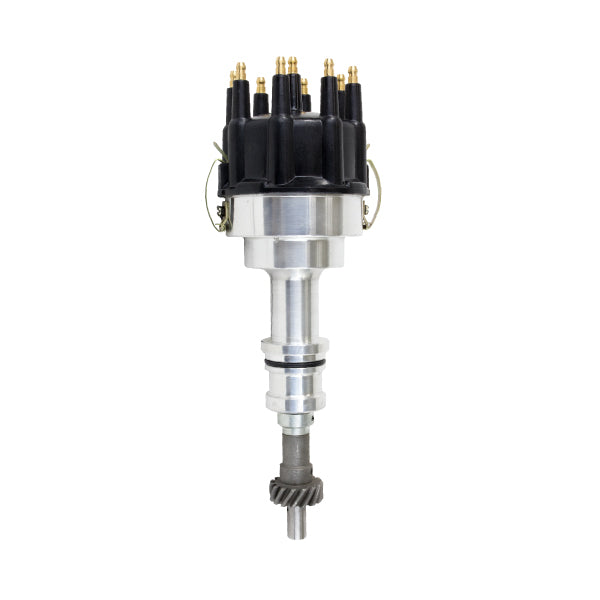

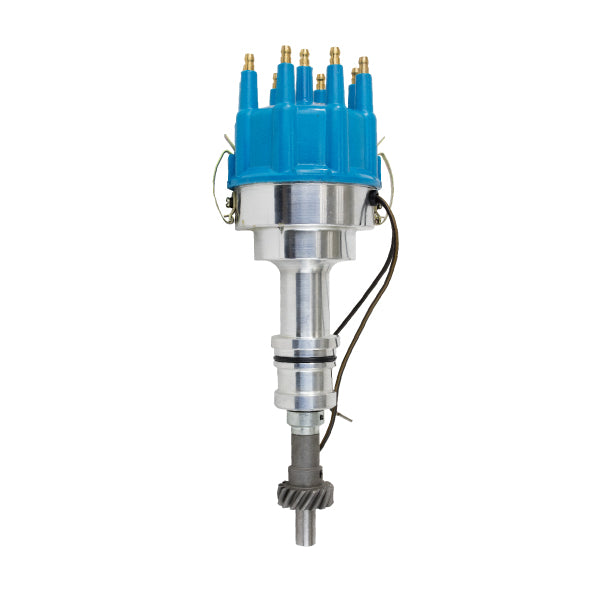

Ford BB/351C Pro Billet Distributor
Upgrade your Ford 351 Cleveland, 351 Modified, 400, 429, or 460 V8 with this Pro Billet distributor, built with a magnetic pickup trigger for use with a compatible external ignition box and coil. This setup is designed for higher-output ignition systems on Mustang, Torino, Ranchero, F-Series, Bronco, Thunderbird, Cougar, Montego, Lincoln Continental, and De Tomaso Pantera applications.
This distributor is built for the Ford 335-Series and 385-series big block family and will not fit Ford 351 Windsor (351W) engines. The housing is machined aluminum with a steel drive gear best matched to cast iron hydraulic or solid flat-tappet camshafts, and rotation is counterclockwise. Requires a compatible external ignition box and a coil rated at 35,000 volts or higher; also requires a 12-volt electrical system with an alternator and is not compatible with generator-based charging systems or vehicles still running an active ballast resistor in the ignition circuit — the resistor should be removed or bypassed as part of installation. Timing is set through mechanical advance only.
What Is a Pro Billet Distributor?

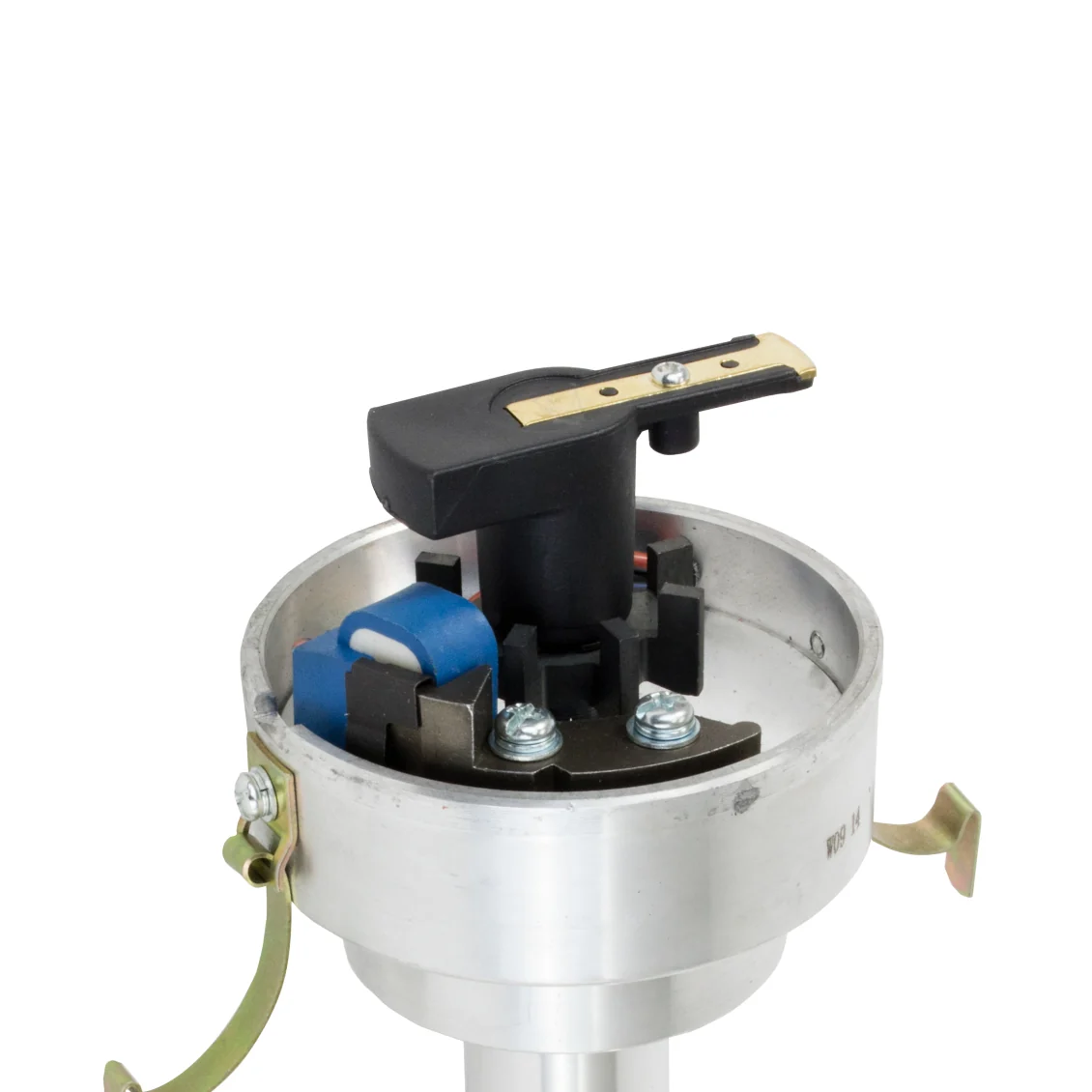

A Pro Billet distributor uses a magnetic pickup trigger but, unlike HEI or Ready-to-Run designs, requires a separate external ignition box in addition to an external coil rather than housing that control on board. This setup is common in higher-output or race-oriented ignition systems where the buyer wants to pair the distributor with a specific external box and coil combination rather than an all-in-one unit.
Performance Benefits
The magnetic pickup trigger delivers consistent, wear-free timing signal without the point drift of older breaker-point systems. Because the ignition box and coil are external and separately selected, this setup allows the ignition system to be matched to higher-output requirements than a self-contained distributor typically supports. Mechanical advance handles the timing curve across the 351C, 351M, 400, 429, and 460 family, keeping the system straightforward to set up and tune.
COMPATIBLE WITH
FORD 335-SERIES & BIG BLOCK V8
• 5.8 L / 351 in³ (351C — Cleveland)
• 5.8 L / 351 in³ (351M — Modified)
• 6.6 L / 400 in³
• 7.0 L / 429 in³
• 7.5 L / 460 in³
NOTES
• Fits Ford 351 Cleveland, 351 Modified, 400, 429, and 460 V8 applications.
• Will not fit Ford 351 Windsor — that is a different engine family requiring a different distributor.
• The 351C was produced from 1970–1974; the 351M and 400 from 1975–1982; the 429 from 1968–1973; the 460 from 1968–1978 in carbureted form.
• Designed for carbureted applications only.
• This distributor is designed for a 12 volt electrical system with an alternator and a performance ignition coil of 35,000 V or more.Â
• It is not compatible with a generator and cannot be used with a ballast resistor.
• Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult camshaft manufacturer for recommended gear material before installation.
COMMON VEHICLE APPLICATIONS
Ford Mustang (351C, 1970–1973)
Ford Torino (351C/400, 1970–1976)
Ford Ranchero (351C/400, 1970–1979)
Ford LTD (400/429/460, 1968–1978)
Ford Thunderbird (429/460, 1968–1976)
Ford F-Series (351M/400/429/460, 1968–1982)
Ford Bronco (351M/400, 1977–1982)
Ford Country Squire (400/429/460, 1971–1978)
Mercury Cougar (351C, 1970–1974)
Mercury Montego (351C/400, 1970–1976)
Lincoln Continental (460, 1968–1978)
Lincoln Mark III / Mark IV / Mark V (460, 1969–1979)
De Tomaso Pantera (351C, 1971–1974)
SPECIFICATIONS
Distributor Type: Pro Billet
Engine Platform: Ford 335-Series & Big Block V8
Trigger Type: Magnetic Pickup
Advance Type: Mechanical
Rotation Direction: Counterclockwise
Cap Color: Available in Black, Blue, Red
Terminal Gender: Male
Mechanical Tach Drive: No
Slip Collar: No
Coil Included: No
Coil Type: External
Coil Output: 35,000+ V
Gear Material: Steel
Housing Material: Machined Aluminum
Ignition Box Required: Yes
Marine Use: No
Cylinders: 8
