Oldsmobile V8 Pro Series Pro Billet Distributor
Upgrade your Oldsmobile second-generation V8 — 260, 307, 330, 350, 400, 403, 425, or 455 CID — with this Pro Series Pro Billet distributor, built with a magnetic pickup trigger for use with a compatible external ignition box and coil. This setup is designed for higher-output ignition systems on Cutlass, 442, Delta 88, Ninety-Eight, Toronado, and Vista Cruiser applications.
This distributor is designed for the second-generation Oldsmobile V8 and will not fit engines built before 1964. The housing is machined aluminum with a steel drive gear best matched to cast iron hydraulic or solid flat-tappet camshafts, and rotation is counterclockwise. Requires a compatible external ignition box and a coil rated at 35,000 volts or higher; also requires a 12-volt electrical system with an alternator and is not compatible with generator-based charging systems or vehicles still running an active ballast resistor in the ignition circuit — the resistor should be removed or bypassed as part of installation. Timing is set through mechanical advance only.
What Is a Pro Billet Distributor?
A Pro Billet distributor uses a magnetic pickup trigger but, unlike HEI or Ready-to-Run designs, requires a separate external ignition box in addition to an external coil rather than housing that control on board. This setup is common in higher-output or race-oriented ignition systems where the buyer wants to pair the distributor with a specific external box and coil combination rather than an all-in-one unit.
Performance Benefits
The magnetic pickup trigger delivers consistent, wear-free timing signal without the point drift of older breaker-point systems. Because the ignition box and coil are external and separately selected, this setup allows the ignition system to be matched to higher-output requirements than a self-contained distributor typically supports on the Oldsmobile second-generation V8 platform. Mechanical advance handles the timing curve, keeping the system straightforward to set up and tune.
COMPATIBLE WITH
OLDSMOBILE V8 (GENERATION 2)
• 4.3 L / 260 in³
• 5.0 L / 307 in³
• 5.4 L / 330 in³
• 5.7 L / 350 in³
• 6.6 L / 400 in³
• 6.6 L / 403 in³
• 7.0 L / 425 in³
• 7.5 L / 455 in³
NOTES
• Designed for second-generation Oldsmobile V8 applications — will not fit first-generation engines produced before 1964.
• The 330 was produced from 1964–1967; the 400 from 1965–1969 (and briefly in 1975 as a Pontiac-sourced engine); the 425 from 1965–1967; the 350 from 1968–1980; the 455 from 1968–1976; the 403 from 1977–1979; the 260 from 1975–1982; the 307 from 1980–1990.
• Designed for carbureted applications only.
• Requires an external coil with a minimum output of 35,000V — no separate ignition box required.
• This distributor is designed for a 12 volt electrical system with an alternator and a performance ignition coil of 35,000 V or more.Â
• It is not compatible with a generator and cannot be used with a ballast resistor.
• Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult camshaft manufacturer for recommended gear material before installation.
COMMON VEHICLE APPLICATIONS
Oldsmobile F-85 / Cutlass (330/350/400/455, 1964–1976)
Oldsmobile 442 (330/350/400/455, 1964–1976)
Oldsmobile Jetstar 88 (330/425, 1964–1966)
Oldsmobile Starfire (425, 1965–1966)
Oldsmobile Delta 88 (350/400/425/455, 1965–1976)
Oldsmobile Ninety-Eight (350/425/455, 1965–1976)
Oldsmobile Toronado (425/455, 1966–1978)
Oldsmobile Vista Cruiser (350/400/455, 1966–1977)
Oldsmobile Cutlass Supreme (350/400/455, 1970–1980)
Oldsmobile Delta 88 Royale (350/403/455, 1971–1979)
Oldsmobile Omega (260/350, 1975–1979)
Oldsmobile Hurst/Olds (455, 1968–1975)
SPECIFICATIONS
Distributor Type: Pro Series Pro Billet
Trigger Type: Magnetic
Advance Type: Mechanical
Rotation Direction: Counterclockwise
Cap Color: Available in Black, Red
Terminal Gender: Male
Mechanical Tach Drive: No
Slip Collar: Yes
Coil Included: No
Coil Type: External
Required Coil Output: 35,000+ Volts
Gear Material: Steel
Housing Material: Machined Aluminum
Ignition Box Required: Yes
Cylinders: 8
Marine Use: No

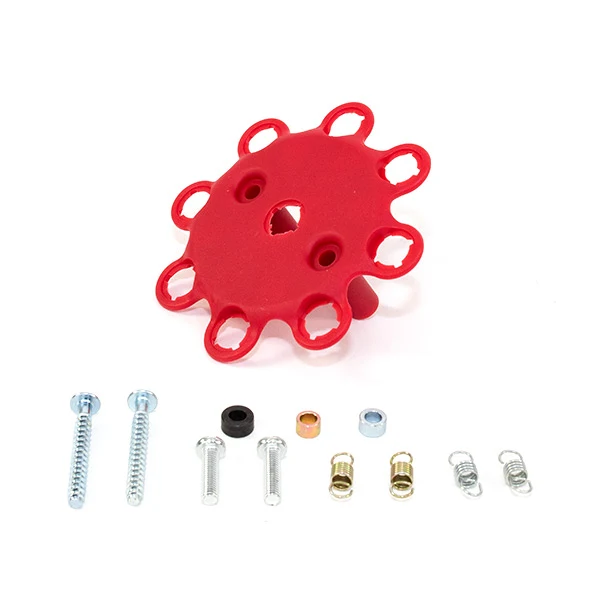

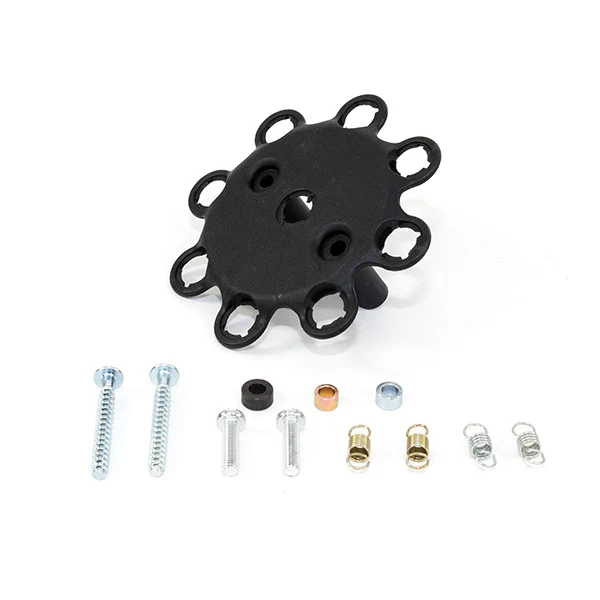

Included: 3 Bushings and 4 Springs for Mechanical Advance
Color-Matched Spark Plug Wire Retainer with Screws
Original: $203.70
-65%$203.70
$71.29More Images
