Pontiac V8 Pro Series Ready to Run Distributor
Upgrade your Pontiac V8 — 326, 350, 389, 400, 421, 428, or 455 CID — with this Pro Series Ready-to-Run distributor, featuring an onboard circuit board ignition module paired with a magnetic pickup trigger, so there's no separate ignition box to wire in, while the external-coil design keeps the flexibility to run a higher-output coil. This distributor supports Tempest/LeMans, GTO, Firebird/Trans Am, Grand Prix, Catalina, Bonneville, Star Chief/Executive, Safari, Grand Am, and Ventura applications.
This distributor is built for Pontiac-built engines only and is not compatible with Chevrolet, Buick, or Oldsmobile V8 engines that were optionally installed in some Pontiac vehicles. The Pontiac 301 uses a redesigned lightweight block with clockwise rotor rotation — the opposite of the rest of the Pontiac V8 family — so 301 applications need distributor compatibility verified before installation. The housing is machined aluminum with a steel drive gear best matched to cast iron hydraulic or solid flat-tappet camshafts, and rotation is counterclockwise for 326–455 applications. This distributor requires a 12-volt electrical system with an alternator and a coil rated at 35,000 volts or higher; it is not compatible with generator-based charging systems or vehicles still running an active ballast resistor in the ignition circuit.
What Is a Ready-to-Run (RTR) Distributor?
An RTR distributor has the ignition control module built directly into the housing, so it fires off a single 12-volt source without needing a separate ignition box wired into the circuit. This Pro Series unit pairs that onboard module with a circuit board ignition control and magnetic pickup trigger. The coil stays external here, requiring a coil rated at 35,000 volts or higher.
Performance Benefits
The circuit board module and magnetic pickup trigger hold timing steady without the wear and drift of a points-based system, and keeping the coil external allows the use of a higher-output coil than the 35,000-volt minimum if the build calls for more spark energy. Mechanical and vacuum advance are both included, along with a color-matched spark plug wire retainer, vacuum advance block-off plate, and power/tachometer extension cables — giving the install a finished, factory-style appearance.
COMPATIBLE WITH
PONTIAC V8
• 4.9L / 301 in³ (1977–1979)
• 5.3L / 326 in³
• 5.7L / 350 in³ (1968–1977)
• 6.4L / 389 in³
• 6.6L / 400 in³
• 6.9L / 421 in³
• 7.0L / 428 in³
• 7.5L / 455 in³
NOTES
• Designed for traditional Pontiac V8 carbureted applications.
• The 301 uses a redesigned lightweight block with clockwise rotor rotation — verify distributor compatibility before installation on 301 applications.
• Not compatible with Chevrolet, Buick, or Oldsmobile V8 engines that were optionally installed in Pontiac vehicles — this distributor fits Pontiac-built engines only.
• Designed for carbureted applications only.
• Requires an external coil with a minimum output of 35,000V — no separate ignition box required.
• This distributor is designed for a 12 volt electrical system with an alternator and a performance ignition coil of 35,000 V or more.Â
• It is not compatible with a generator and cannot be used with a ballast resistor.
• Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult camshaft manufacturer for recommended gear material before installation.
COMMON VEHICLE APPLICATIONS
Pontiac Tempest / LeMans (326/350/400/455, 1964–1977)
Pontiac GTO (389/400/421/428/455, 1964–1974)
Pontiac Firebird / Trans Am (326/350/400/428/455, 1967–1979)
Pontiac Grand Prix (389/400/421/428/455, 1962–1979)
Pontiac Catalina (389/400/421/428/455, 1961–1979)
Pontiac Bonneville (389/400/421/428/455, 1961–1979)
Pontiac Star Chief / Executive (389/400/421/428/455, 1961–1970)
Pontiac Safari (400/428/455, 1961–1977)
Pontiac Grand Am (400/455, 1973–1975)
Pontiac Ventura (350, 1973–1977)
Pontiac Phoenix (301, 1977–1979)
SPECIFICATIONS
Distributor Type: Ready to Run
Trigger Type: Circuit Board Module with Magnetic Pick-Up
Distributor Rotation: Counter-Clockwise
Advance Type: Mechanical and Vacuum
Cap Color: Available in Red, Blue, Black
Terminal Gender: Male
Mechanical Tach Drive: No
Slip Collar: No
Coil Included: No
Coil Type: External
Required Coil Output: 35,000+ V
Required Electrical Setup: 12 V with Alternator
Gear Material: Steel
Housing Material: Machined Aluminum
Ignition Box Required: No
Cylinders: 8
Marine Use: No

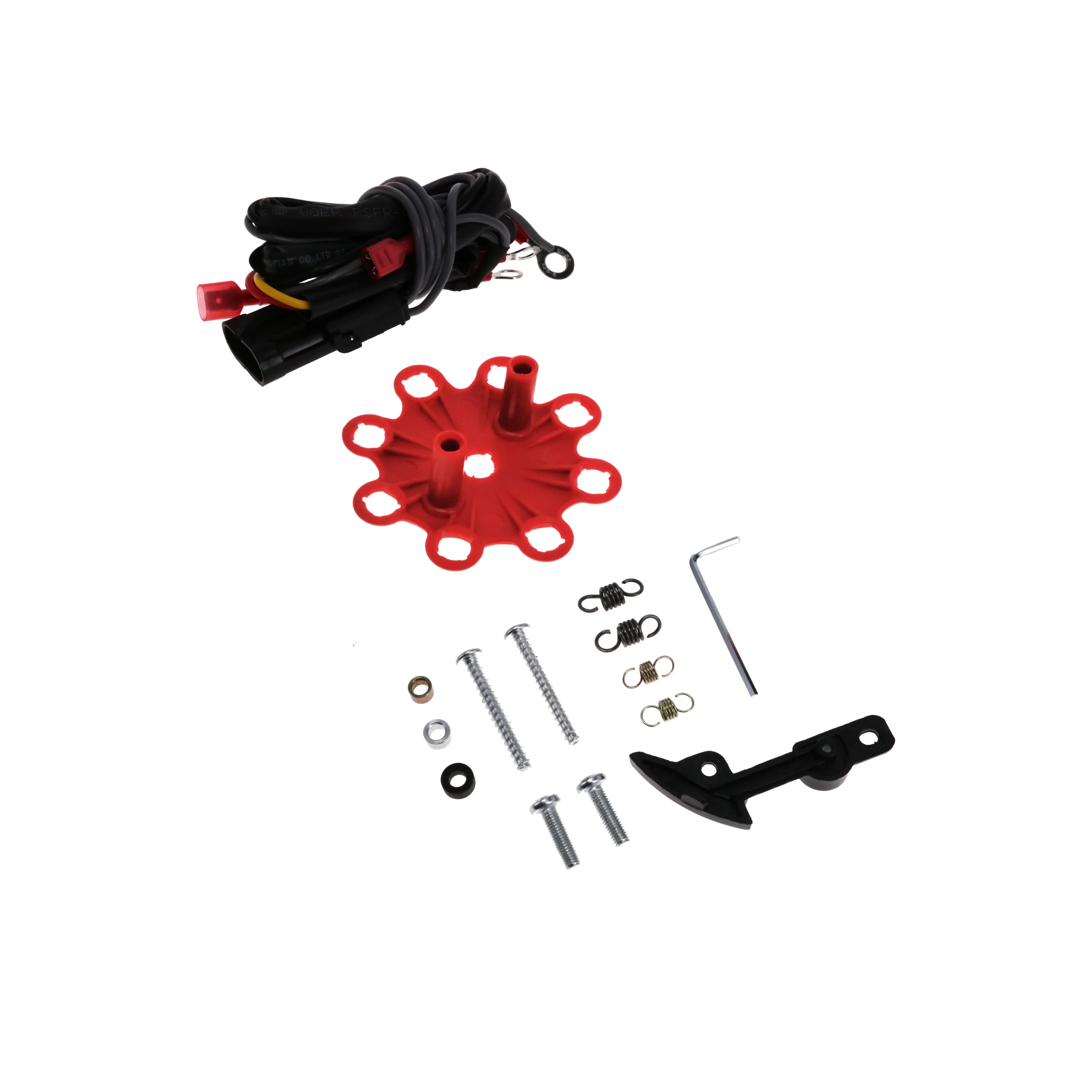

Included: 3 Bushings and 4 Springs for Mechanical Advance
Color-Matched Spark Plug Wire Retainer with Screws
Vacuum Advance Block-Off Plate (Black)
Power Extension Cable
Tachometer Output Extension Cable
